Four expressions of one philosophy — every X1 on traction with a counterweight, connected to our service centre from day one.
A compact shaft, a low pit, and finishes chosen like furniture — so the lift becomes a considered part of the architecture, not an afterthought.
Aria · Halo · Lumi · Nest — the full detail lives in the X1 catalogue.

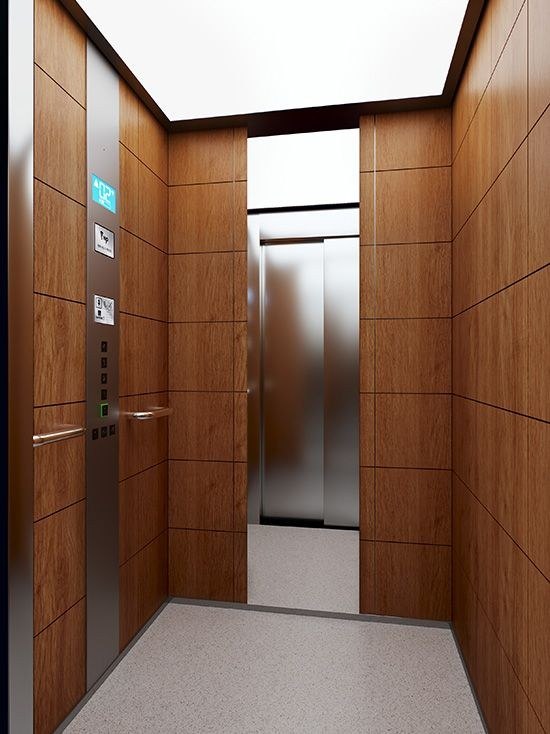

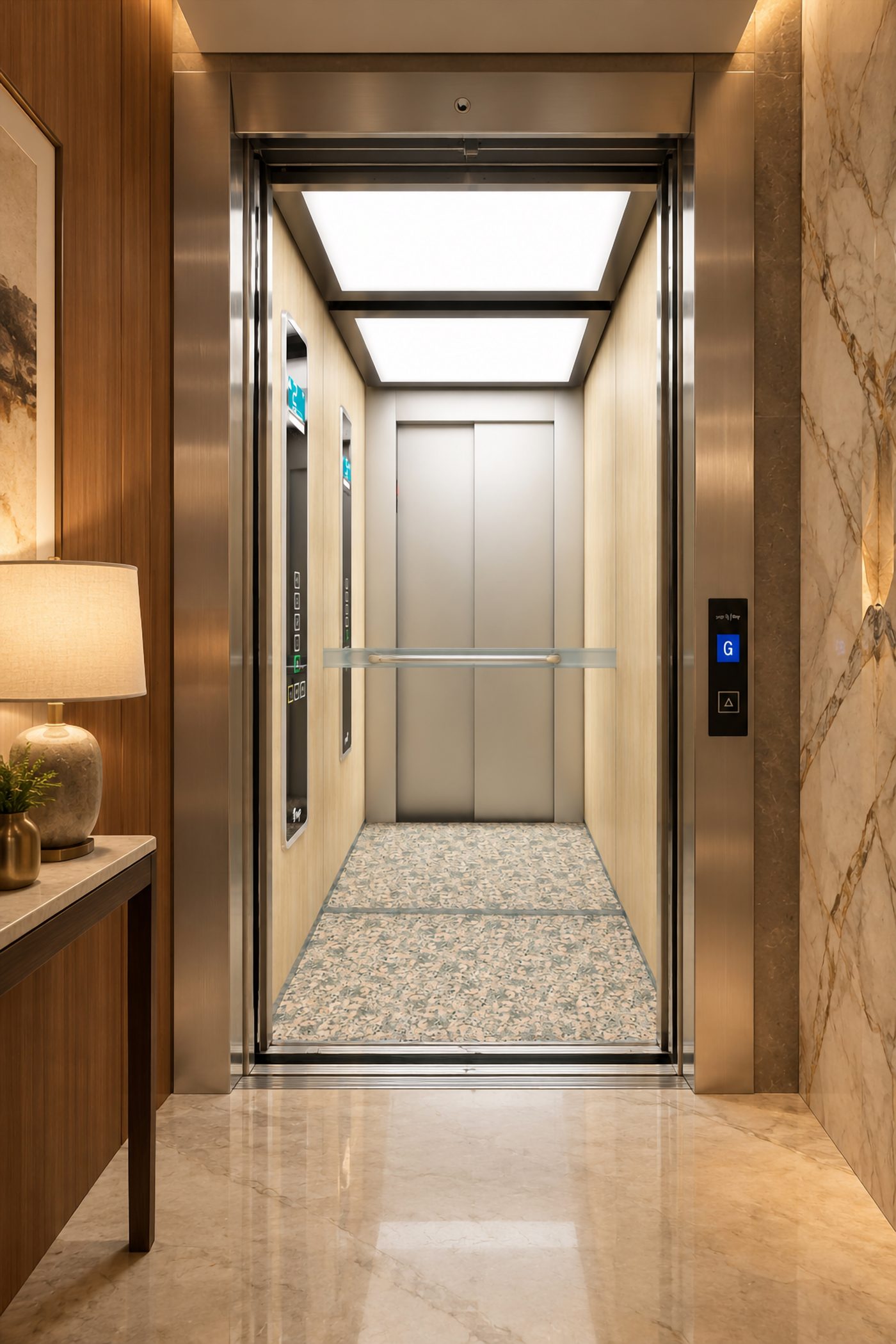

More room for life — a larger cabin in the same masonry shaft, gliding on coated ropes.
| Capacity | Up to 1,000 kg · 13 persons |
| Speed · Travel | 1.0 m/s · 45 m · 16 stops |
| Pit · Overhead | From 300 mm · from 2,800 mm |
| Drive | Coated-rope gearless traction · EN 81-20/50 |
| Best for | New builds with a planned shaft · G+3 and beyond |

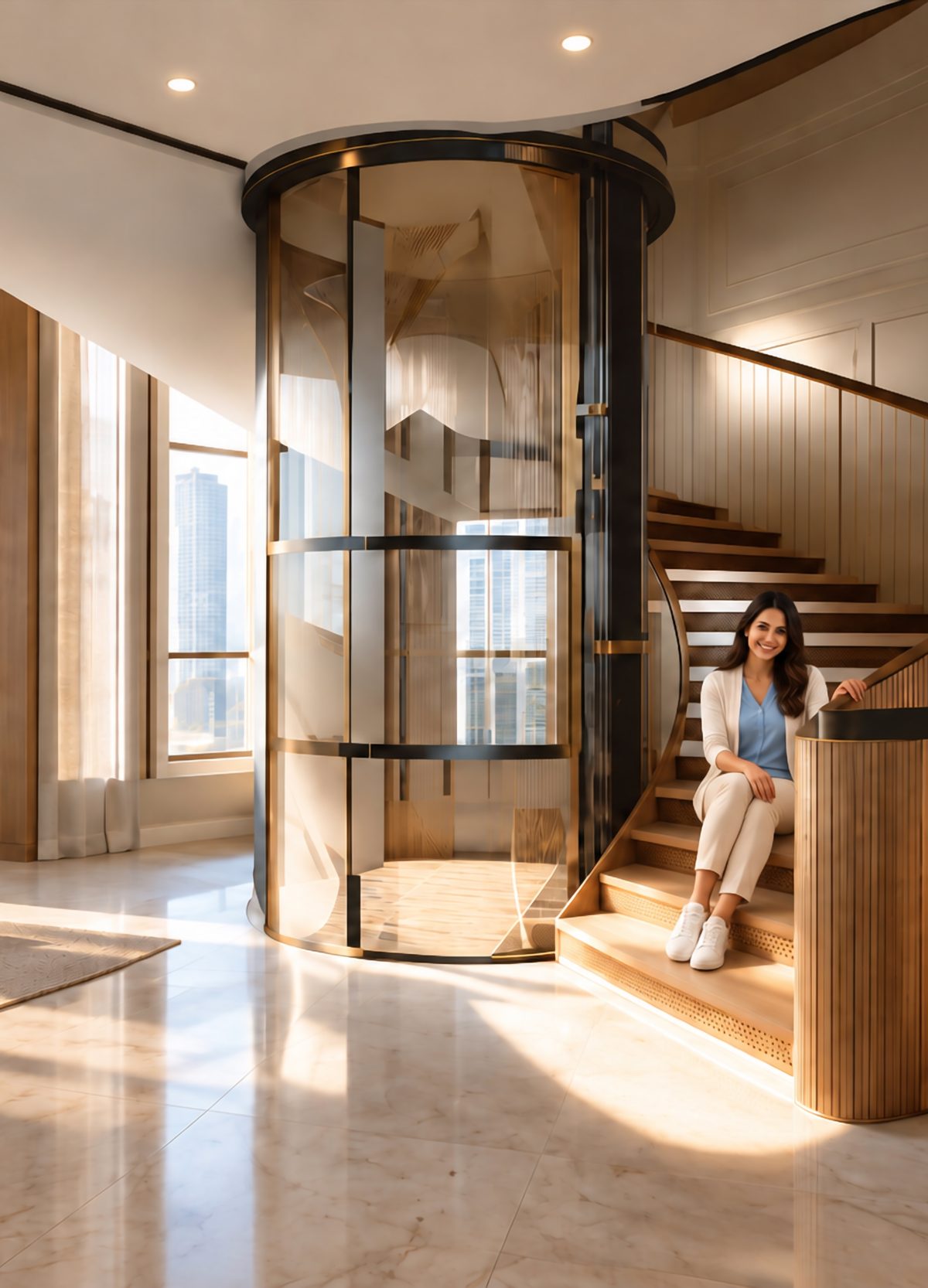

A circle of glass. A view without corners — India's first counterweight panoramic round lift.
| Capacity | 400 kg · 5 persons |
| Speed · Travel | 0.4 m/s · 12 m · 5 stops |
| Diameter · Pit | Ø1400 – 2000 mm · pit from 200 mm |
| Drive | Curved glass · steel-belt gearless traction |
| Best for | Living spaces where the lift is furniture |

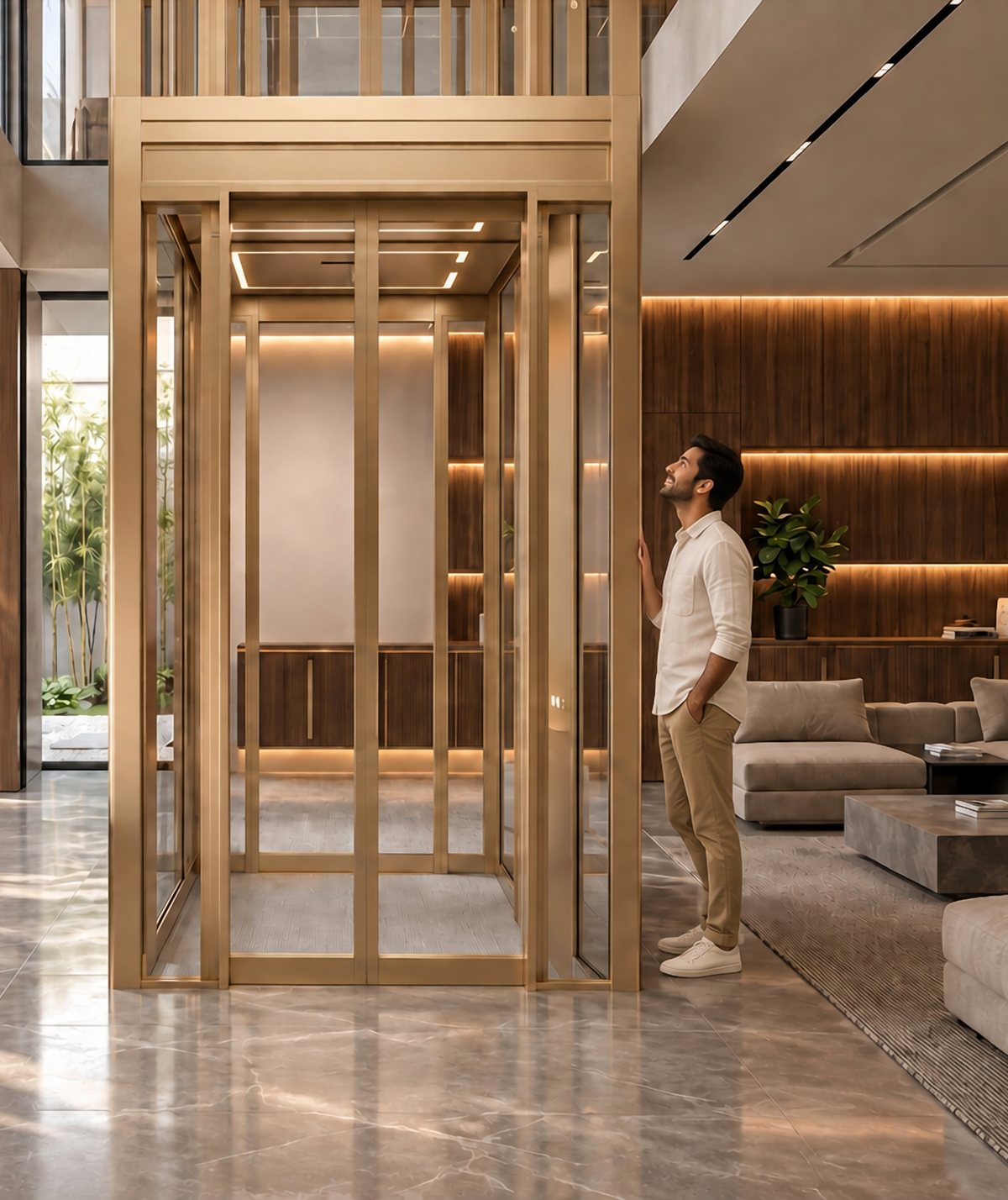

Glass becomes architecture — daylight, openness and perspective travel with you.
| Capacity | 400 kg · 5 persons |
| Speed · Travel | 0.4 m/s · 12 m · 5 stops |
| Pit · Overhead | From 250 mm · from 2,850 mm |
| Structure | Free-standing aluminium shaft · six glass tones |
| Best for | Stairwells & atriums · retrofit-friendly |
It brings its own structure — a corner of space and a shallow 100 mm step is all it asks of a cherished home.
| Capacity | 350 kg · 4 persons |
| Speed · Travel | 0.3 m/s · 12 m · 5 stops |
| Footprint | 1000 × 1000 mm shaft · pit from 100 mm |
| Power | Single-phase 230 V — no demand on the home |
| Best for | Retrofits · tight corners · duplex apartments |
Free-standing shafts are visible architecture — so they arrive colour-matched down to their door panels. No concrete, no site painting.

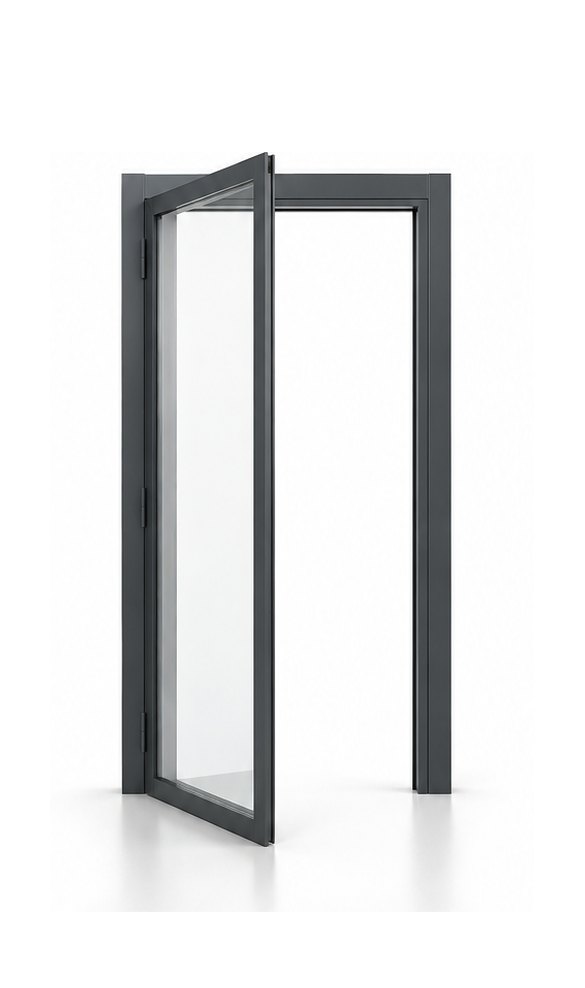

Manual swing — a full-glass leaf, light to the hand, the quietest, most furniture-like entry.

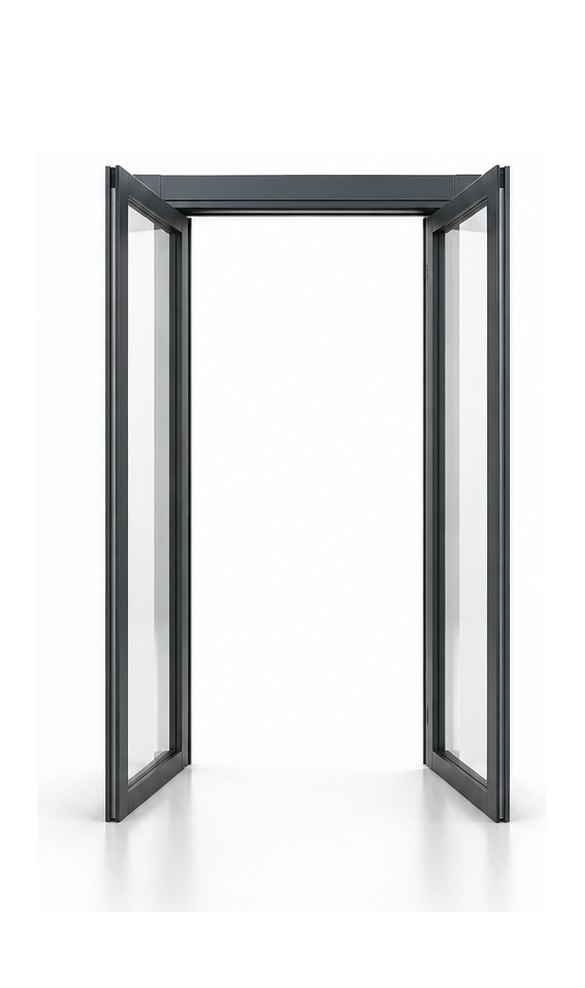

Automatic swing — two glass leaves parting from the centre, opening themselves as you arrive.

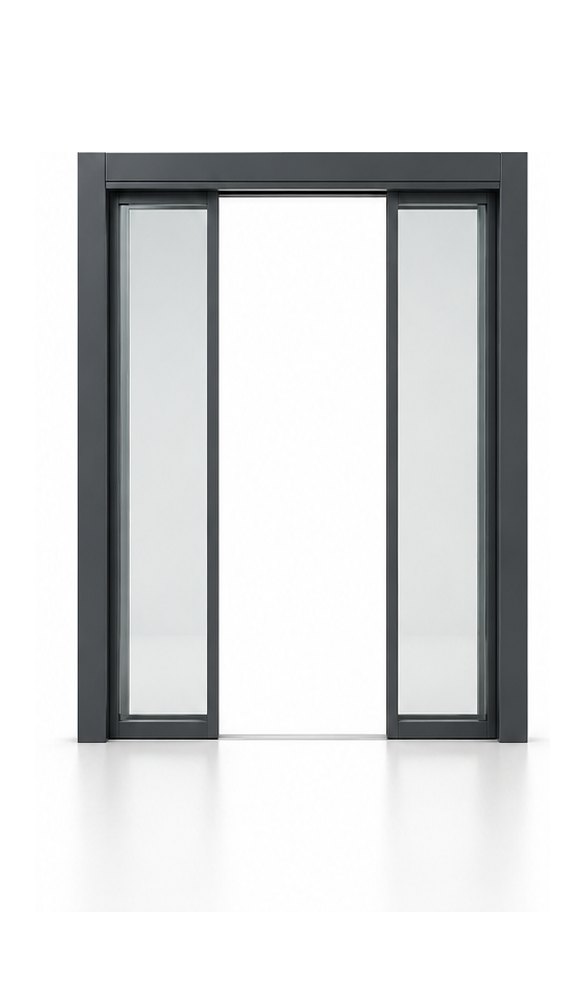

Automatic sliding — centre-parting panels, compact and hands-free, the classic lift gesture.

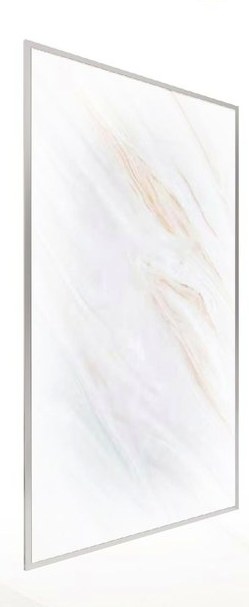

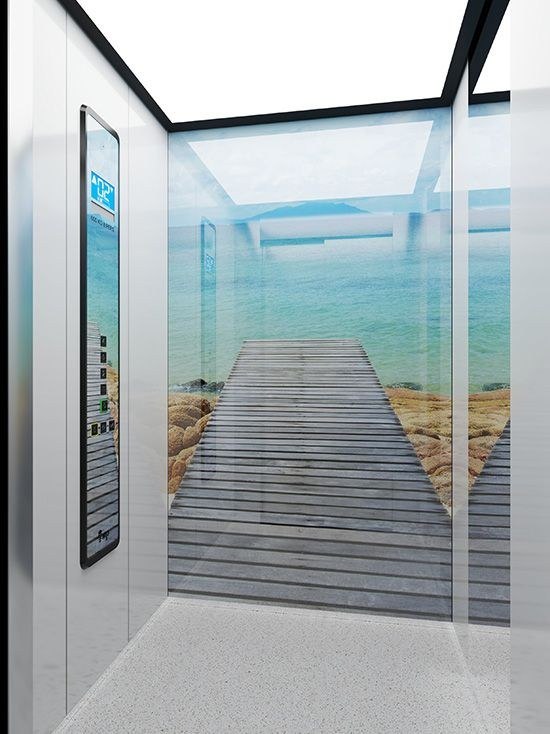

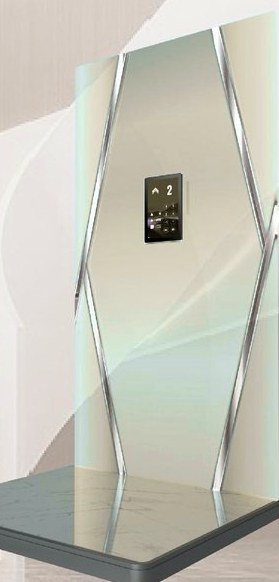

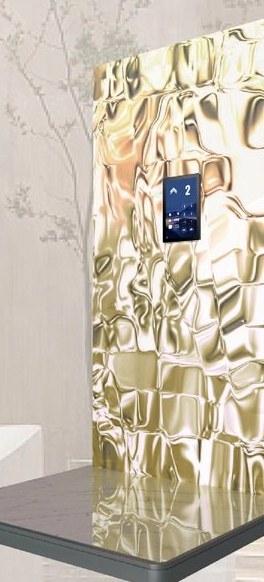

A single sheet of printed glass, full height. Seven Scenic Series designs for Lumi, six Compact Series for Nest — or your own artwork, rendered in glass by the Interior Studio.
L·01 – L·07 · N·01 – N·06 · Bespoke — every X1 wall can be one of one.

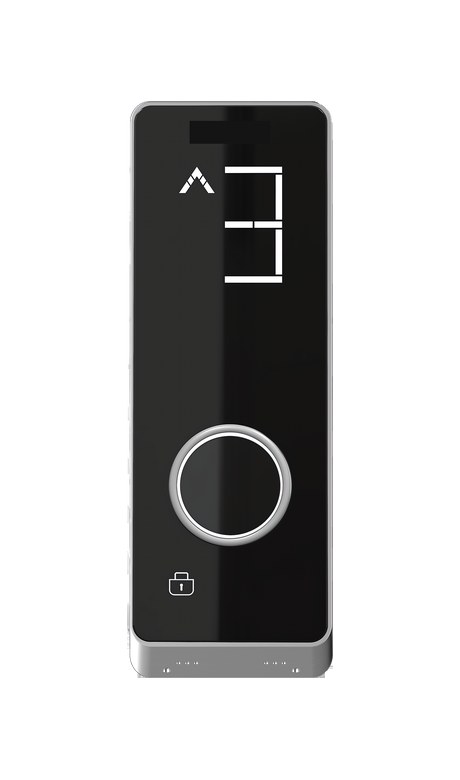

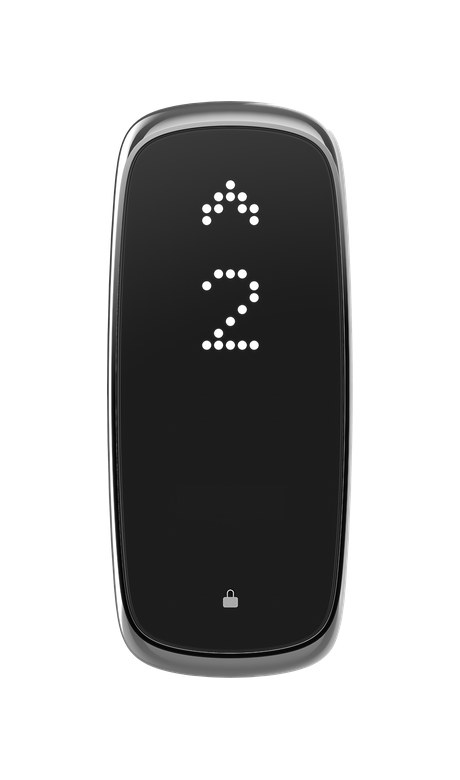

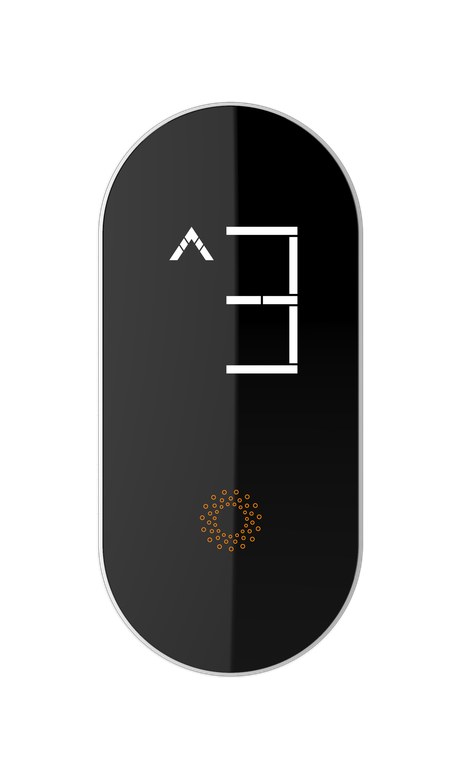

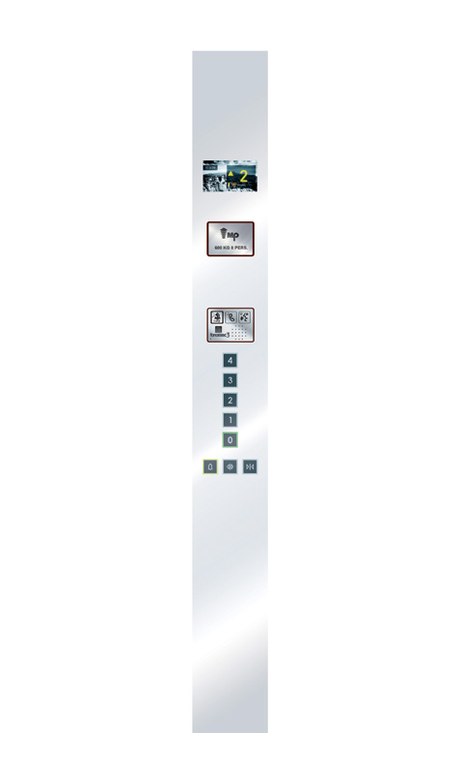

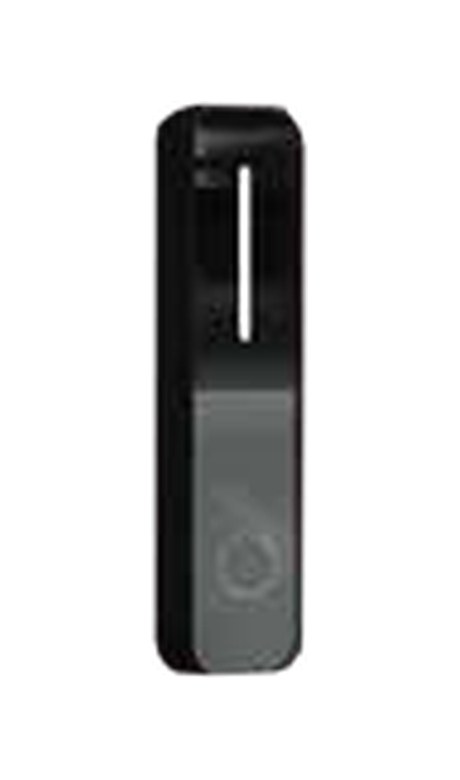

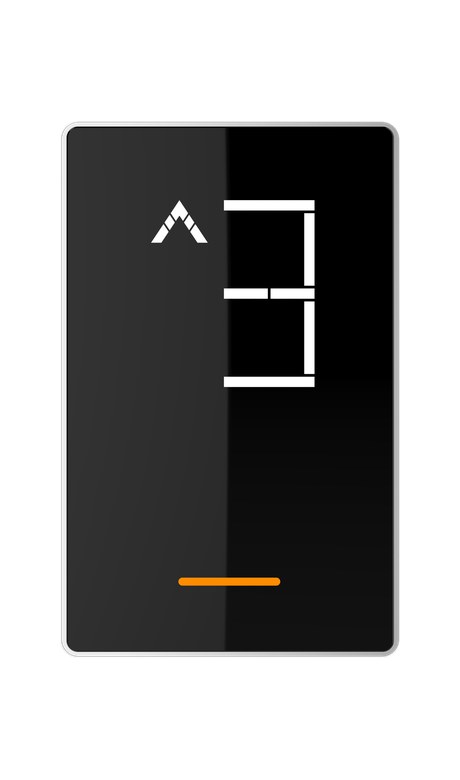

Explore every art wall in The StudioGlass-front touch panels in the cabin, minimal plates on every landing — chosen once, echoed on every floor.
Coated steel
Stainless steel
Milled phenolic

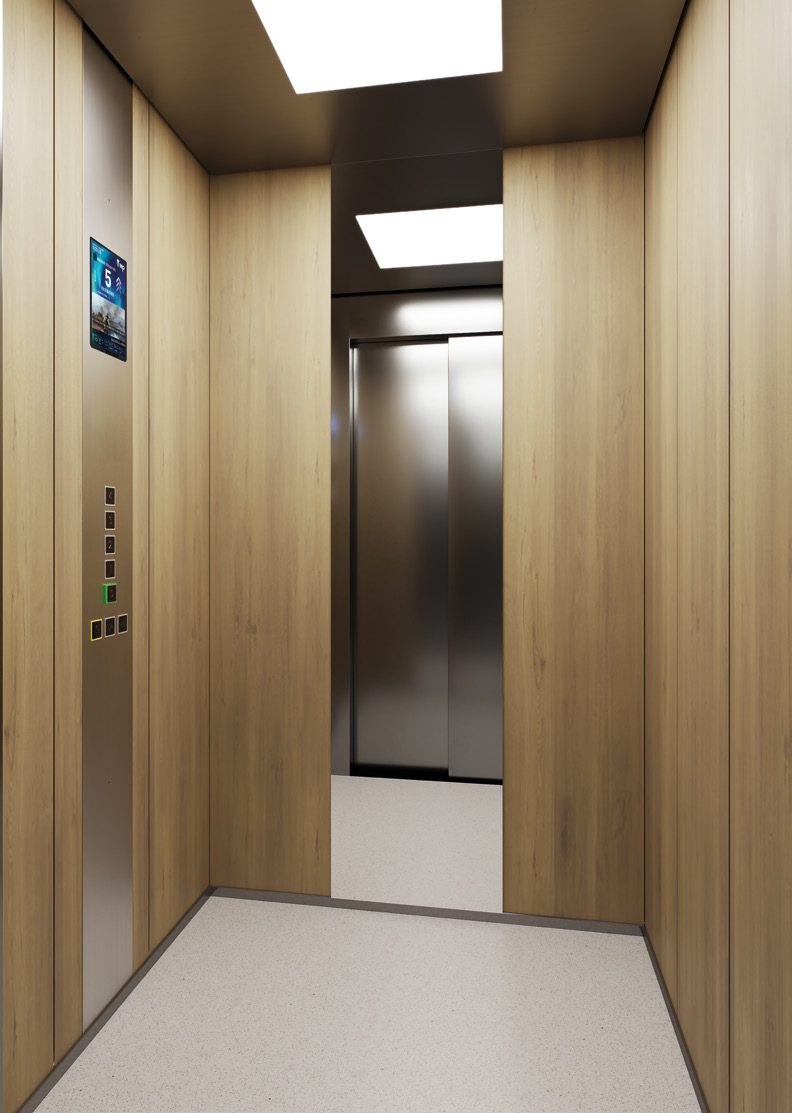

Melamine & woods
Premium bespoke
Composed live with your consultant in the YugX Studio — every surface on screen before a single panel is made.
Choose your model or expression and compose your interior with your YugX consultant — see it before it is built. Model & layout · interior collection · controls & lighting.
Our team surveys your site, confirms every dimension, and prepares a plan made to fit — not to compromise. Survey · GA drawing · civil-work checklist.
Our own engineers install cleanly and precisely, with one point of contact throughout. Specialist crew · safety & ride tests · clean handover.
YugX Smart Mobility and our own service team watch over your lift throughout its working life — care that is planned, never reactive.
Because safety is the foundation of luxury, not an afterthought.
No franchisees, no third parties — one team answerable to you.
From the first drawing to every year of ownership, YugX stays with you.
| Aria · Flagship | Halo · Signature | Lumi · Scenic | Nest · Compact | |
|---|---|---|---|---|
| Capacity | 1,000 kg · 13 p | 400 kg · 5 p | 400 kg · 5 p | 350 kg · 3 p |
| Speed | 1.0 m/s | 0.4 m/s | 0.4 m/s | 0.3 m/s |
| Travel · Stops | 45 m · 16 | 12 m · 5 | 12 m · 5 | 12 m · 5 |
| Pit | From 300 mm | From 200 mm | From 250 mm | From 100 mm |
| Overhead | From 2,800 mm | From 3,000 mm | From 2,850 mm | From 2,500 mm |
| Structure | Masonry shaft · MRL | Free-standing · Ø1400–2000 | Free-standing aluminium | Self-supporting · 1000×1000 |
| Drive | Coated-rope gearless | Steel-belt gearless | Steel-rope gearless | Steel-belt gearless |
| Doors | Auto sliding — centre / telescopic | Curved sliding / 2-panel swing | Auto sliding — centre / telescopic | 2-panel centre swing |
| Power | 3-ph 415 V / 1-ph 230 V | 1-ph 230 V | 1-ph 230 V | 1-ph 230 V |
| Standard | EN 81-20/50 | IS 17900* | IS 17900* | IS 17900* |
Automatic rescue to the nearest floor — standard on every model. *IS 17900 compliance confirmed per installation. Dimensional drawings follow in the Technical Companion with every proposal.
At the heart of every X1 is a counterweight — a quiet idea perfected over a century in the world's finest buildings. It balances the cabin like two children on a see-saw, so the motor moves only the difference.
No screws · No vacuum tubes · No hydraulics — smoother, quieter, decades-proven.
The complete X1 catalogue — every model, every finish, every specification — as PDF, the way your architect and consultant will want them.
A free home visit with a YugX consultant — we measure, we listen, and you see your lift on screen before a single panel is made.
